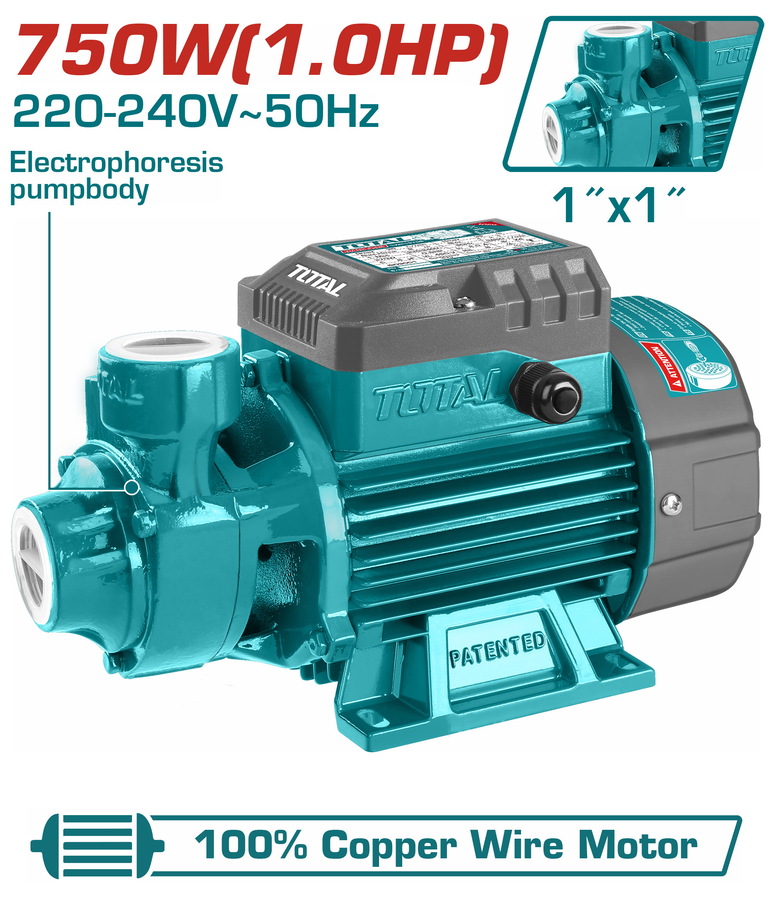

Total TWP17506 Water pump 750W(1.0HP) 52M
KSh10,500.00
Water pump
Peripheral Pump
Voltage:220-240V~50Hz
Rated power:750W(1.0HP)
Max.head:52m
Max.flow:50L/min
Max.suction:8m
Pipe diameter:1″x1″
Copper wire motor
Stainless steel welding shaft : 304+45#
Electrophoresis pump body
Brass impeller
0.3m length cable
Packed by carton box
TOTAL TWP17506 is a high-head 1.0 HP peripheral surface water pump designed for domestic water boosting, tank filling, and small-scale agricultural transfer.
Technical Specifications
| Parameter | Specification Details |
| Model Code | TWP17506 |
| Pump Type | Peripheral Water Pump |
| Rated Output Power | 750W / 1.0 Horsepower (HP) |
| Operating Voltage | 220–240V ~ 50Hz (Single Phase) |
| Max Head (Pumping Height) | 52 Meters |
| Max Flow Rate | 50 Liters/minute ($3.0\text{ m}^3/\text{h}$) |
| Max Suction Lift | 8 Meters |
| Inlet / Outlet Diameter | $1” \times 1”$ (25 mm) |
| Impeller Material | Brass |
| Motor Winding | 100% Copper wire |
| Pump Body Treatment | Electrophoresis treatment (anti-rust) |
| Shaft Material | Stainless steel welding shaft ($304 + 45\#$) |
Key Features & Applications
-
High Pressure Output: Delivers up to 52m head vertical lift, making it ideal for multi-story residential supply, pressure boosting systems, and long-distance transfers.
-
Durability: Features a brass impeller to prevent jamming/corrosion, a rust-treated cast pump body, and full copper motor windings for high thermal endurance.
-
Primary Uses: Pumping clean water from shallow wells/cisterns, filling elevated overhead tanks, garden hose/sprinkler irrigation, and inline home pressure boosting.
